Koike – IK-12 Beatle
8 People watching this product now!

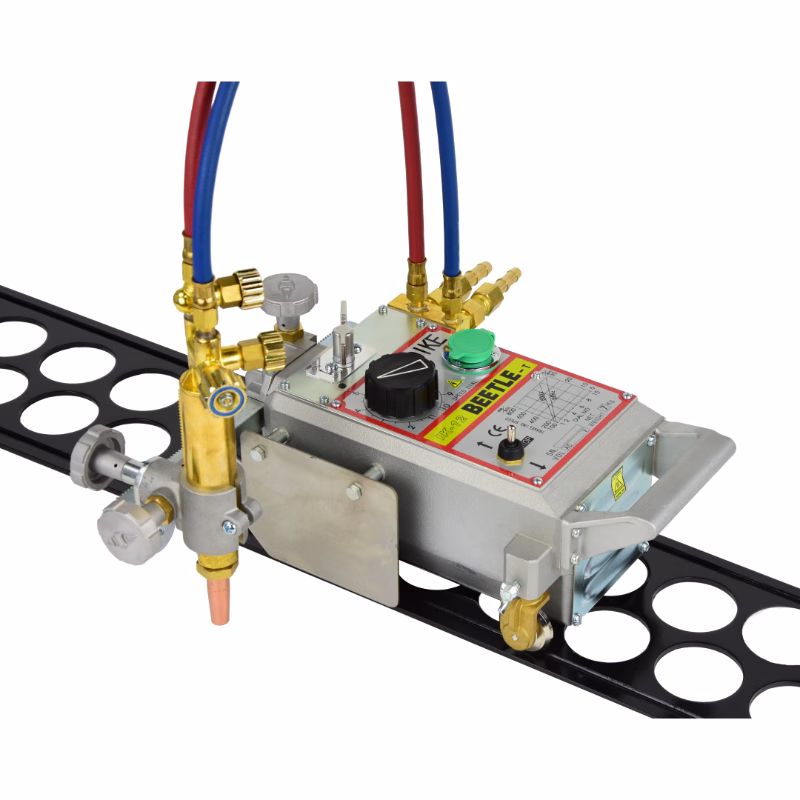

The IK-12 Beetle is an affordable, portable, oxy-fuel cutting machine. It is known around the world as one of the best cutting machines in the industry.
Single Cone Stepless Mechanical Drive System equipped on the IK-12 Beetle guarantees a constant and stable movement of the machine, providing sharp, clean cuts. The travel functions (forwards, backwards, stop) are activated only by one operation element. The clutch control assures a trouble-free positioning of the machine. Bevel cutting is achieved by simply adjusting the torch holder at the bottom edge of the plate. A gear rack / bevel drive ensures a precise posi- tioning of the machine torch (Y – and Z-axis).
- Multiple use oxy-fuel machine
Performs high quality straight, circle and bevel cuts. Single model includes 1 torch and 3 cutting nozzles. - Single Cone Stepless Drive System
Maintains constant travel speed even with high temperatures providing stable, trouble-free cutting. - Lightweight Aluminium body
At only 9.5 kg, easy to carry and use. Built robust to be a true workhorse. - Simple operation
All functions are controlled by forward / off / re- verse switch, clutch lever and speed adjustment knob. - Extendable 1800 mm straight rail
Cut longer parts.
Basic specifications
| Cutting thickess | 5 – 50 mm |
| Cutting speed | 150 – 800 mm/min |
| Bevel angle | 0 – 45° |
| Drive system | Single cone stepless drive system |
| Motor | Induction motor |
| Input power | AC 220V / 42V |
| Dimension | L350 x W175 x H140 mm |
| Weight | 9.5 kg |
