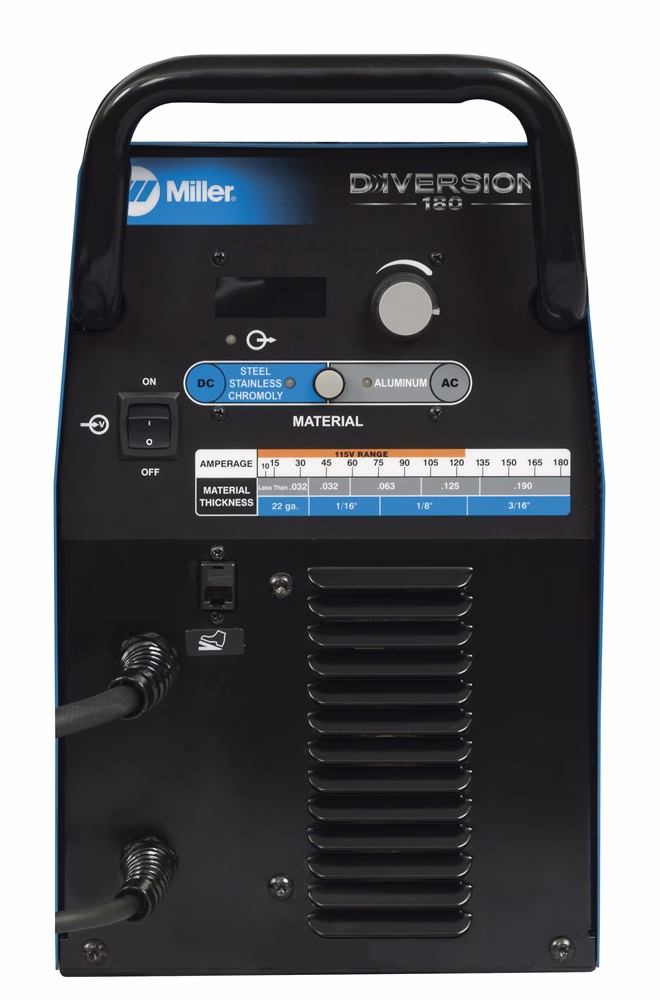

Miller – Diversion™ 180 TIG Welder
Perfect for the personal user, this AC/DC TIG machine upgrade has both 120V and 240V input power capability.
| Brand | Miller |
|---|
6 People watching this product now!
Processes
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
General Specifications
| Title | Diversion™ 180 TIG Welder |
|---|---|
| Applications | Aluminum Welding Automotive Welding Metal Art Mobile Fabrication & MRO Stainless Steel Welding Education and Training |
| Material Thickness | Aluminum 0.030 in. (0.75 mm) – 3/16 in. (4.8 mm) Steel 0.025 in. (0.6 mm) – 3/16 in. (4.8 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 80 VDC |
| Amperage Min | 10 A |
| Amperage Max | 180 A |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Net Width | 9.875 in |
| Net Height | 17 in |
| Net Length | 23.875 in |
| Net Weight | 50 lbs |
