Miller – Toughcut™ propane outfit w/acc, CGA510
Toughcut outfits include safety and reliable features found on other expensive medium duty outfits. The torch is nickel plated to deflect heat and resist rust. Cuts up to 6” thick steel, heat, gouge and weld with optional tips.
| Brand | Miller |
|---|
18 People watching this product now!
General Specifications
| Title | Toughcut™ propane outfit w/acc, CGA510 |
|---|---|
| Applications | Welding Projects |
| Industries | Shipbuilding Racing Farm and Ranch Manufacturing Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Warranty | 3 Years Miller’s Gas Equipment and Gas Control Warranty |

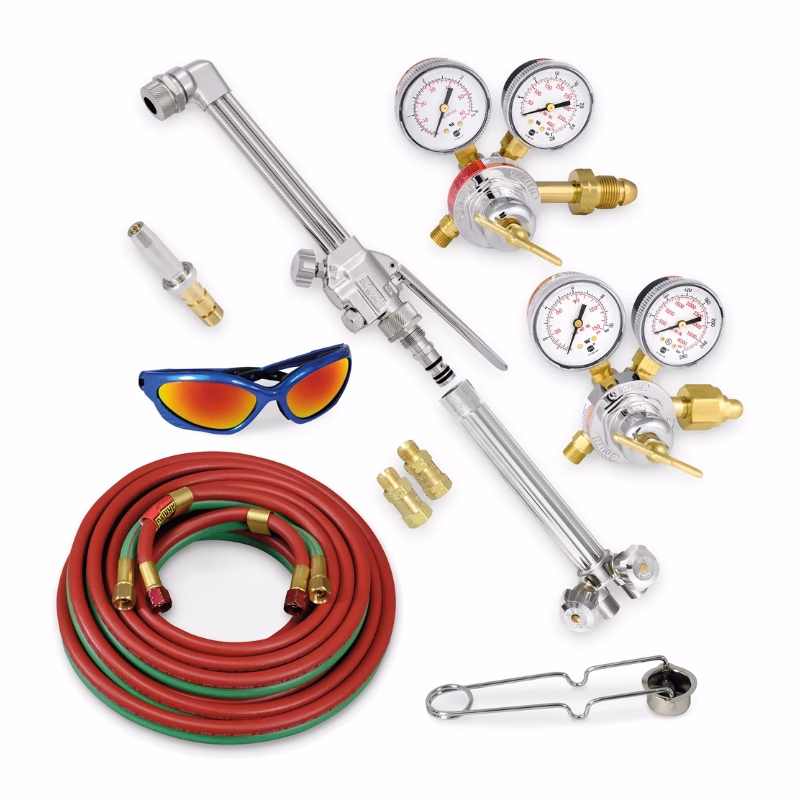

What’s Included
- Torch handle (CW5A)
- Cutting Attachment (CC509P)
- Oxygen Regulator (30-100-540)
- LPG Regulator (30-50-510)
- Cutting Tip (MC40-1)
- 20-ft 1/4″ Twin Hose (TRL1131)
- Friction Lighter (N113ANB)
- Safety Glasses (78000)
- Regulator Mount Check Valves (H698)
- Operations Manual
Silver-Brazed Connections
For extra protection, strength and leak resistance.
Nickel-Plated Finish
Deflects heat and resists corrosion.
Silver-Brazed Nickel-Plated Torch Joints
Provides strength, leak resistance and heat deflection.
Stainless Steel Ball-Style Valves
Allows for smooth adjustment and positive seating to eliminate leaks.
Three Tube Construction
Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
Triple O-Ring Seal
For easy 360-degree torch head rotation to reduce operator fatigue.
Double-Tube Handle
Tube-within-a-tube design provides strength while reducing weight.
Internal Threads
Threads are protected from damage if torch is dropped.
Adjustable Valve Resistance
PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.
Center Pre-Heat Valve
Usage for both left and right-handed operators.
Dual Filters Including Sure Seat™
The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
Nickel-Plated Bonnet with Forged Brass Body
Protects against corrosion.
External Relief Valve
Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
Neoprene Composite Diaphragm
Resists corrosion for extended service life.
