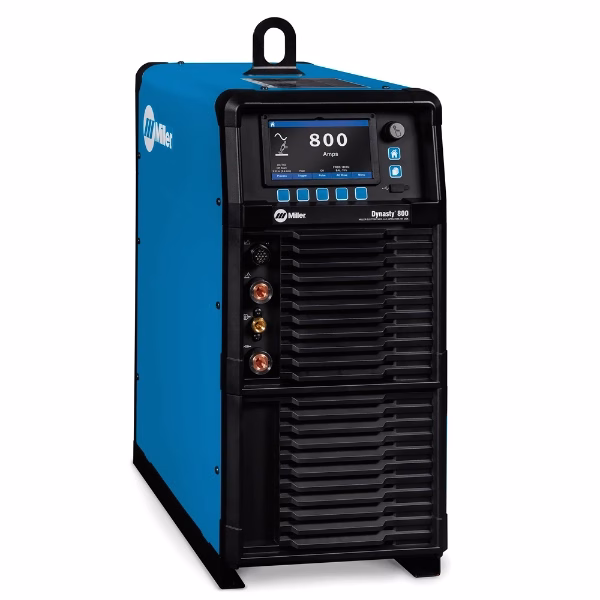

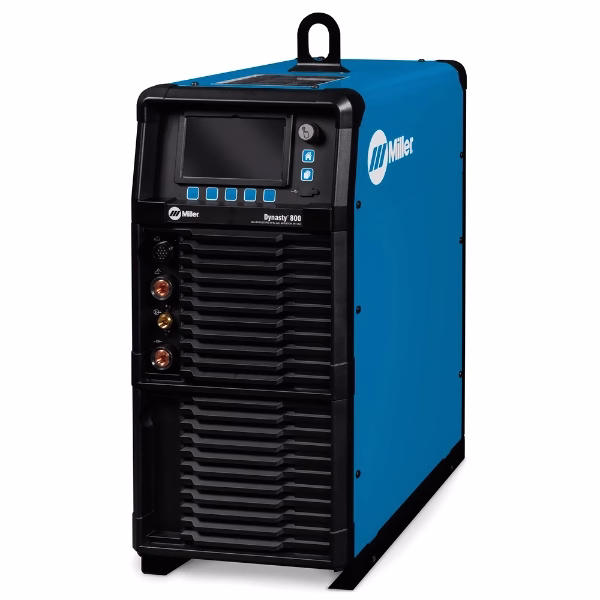

Miller – Dynasty® 800 TIG Welders – 907859
The Dynasty 800 Series is a powerful, compact power source capable of welding up to 1 in. aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.
Description
Product Literature
Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Pulsed TIG (GTAW-P)
Stick (SMAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
TIG (GTAW)
Technologies
Auto-Line
Auto-Set
General Specifications
| Title | Dynasty® 800 208-600 V |
|---|---|
| Applications | Aluminum Welding Fabrication Process Pipe |
| Industries | Aerospace Manufacturing |
| Material Thickness | Aluminum 0.020 in. (0.5 mm) – 1 in. (25.4 mm) Steel 0.020 in. (0.5 mm) – 1 in. (25.4 mm) |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 75 VDC |
| Amperage Max | 800 A |
| Welding Mode | CC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575/600 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Net Width | 13.9 in |
| Net Height | 30.2 in |
| Net Length | 24.3 in |
| Net Weight | 201 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
