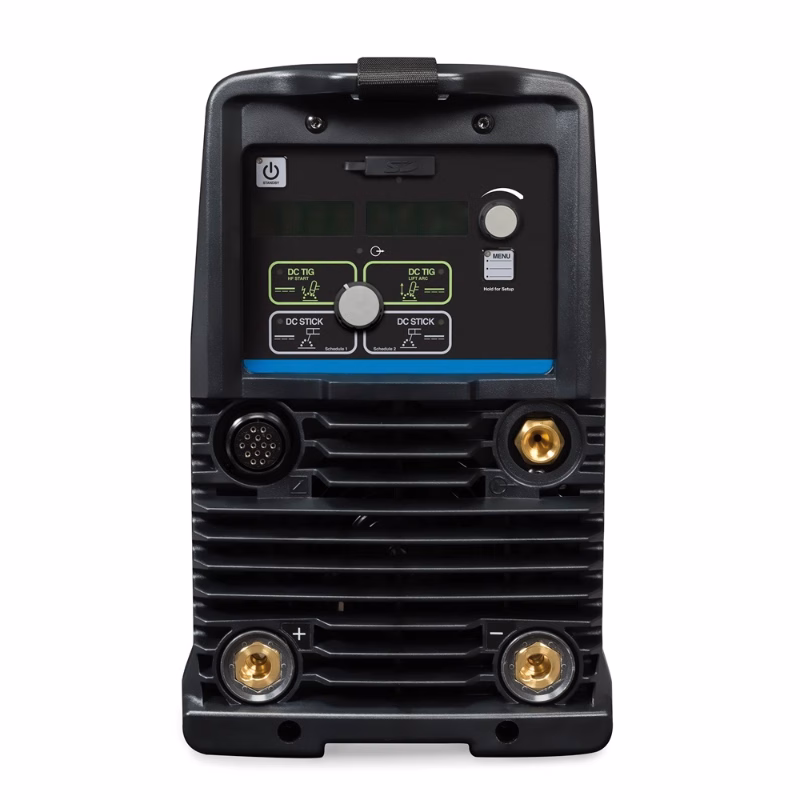

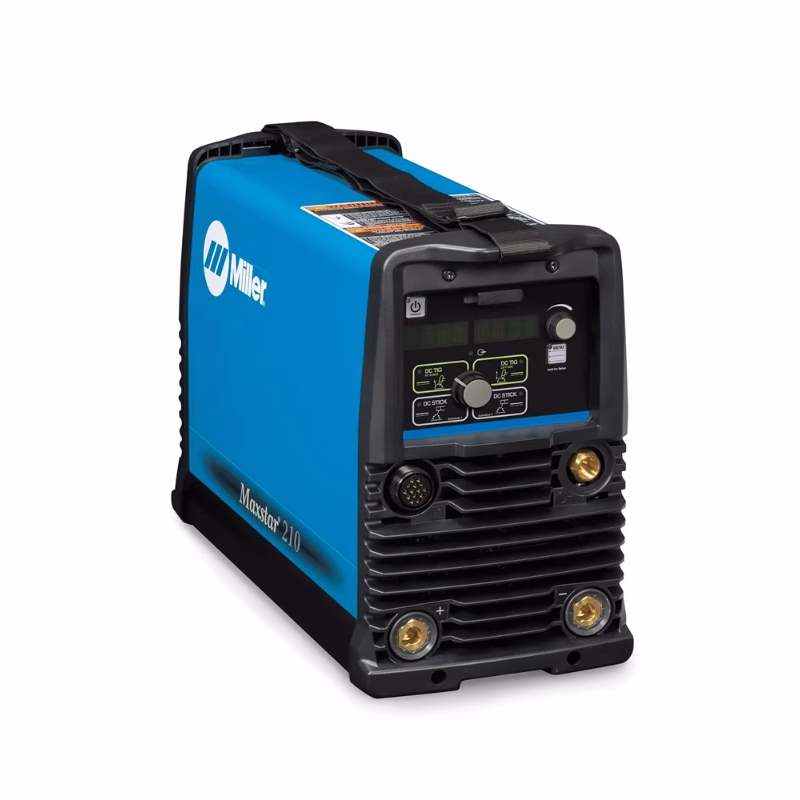

Miller – Maxstar® 210 TIG Welders
The perfect combination of sophisticated inverter technology and advanced features. Weighing only 38 pounds, the Maxstar 210 is an extremely versatile DC TIG/Stick power supply.
| Brand | Miller |
|---|
15 People watching this product now!
Product Literature
Processes
TIG (GTAW)
TIG DC (GTAW-DC)
Stick (SMAW)
General Specifications
| Title | Maxstar® 210 120-480 V |
|---|---|
| Industries | Shipbuilding Construction and Fabrication |
| Material Thickness | Steel 0.002 in. (0.05 mm) – 1/4 in. (6.4 mm) |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Current Type | DC |
| Max Open Circuit Voltage | 80 VDC |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Portability | Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | CC |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Net Width | 8.6 in |
| Net Height | 13.6 in |
| Net Length | 19.5 in |
| Net Weight | 38 lbs |
