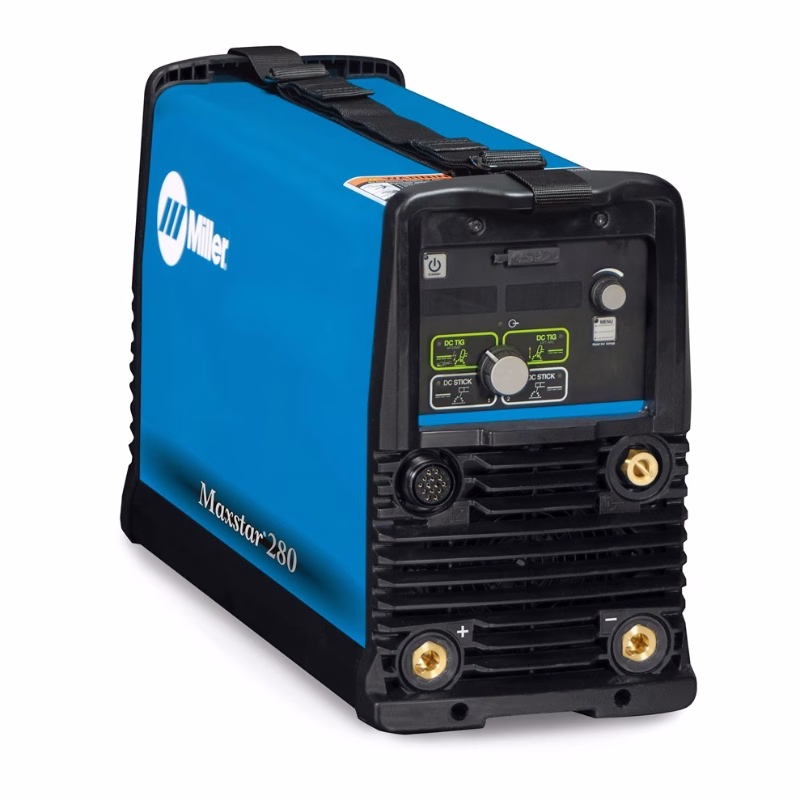

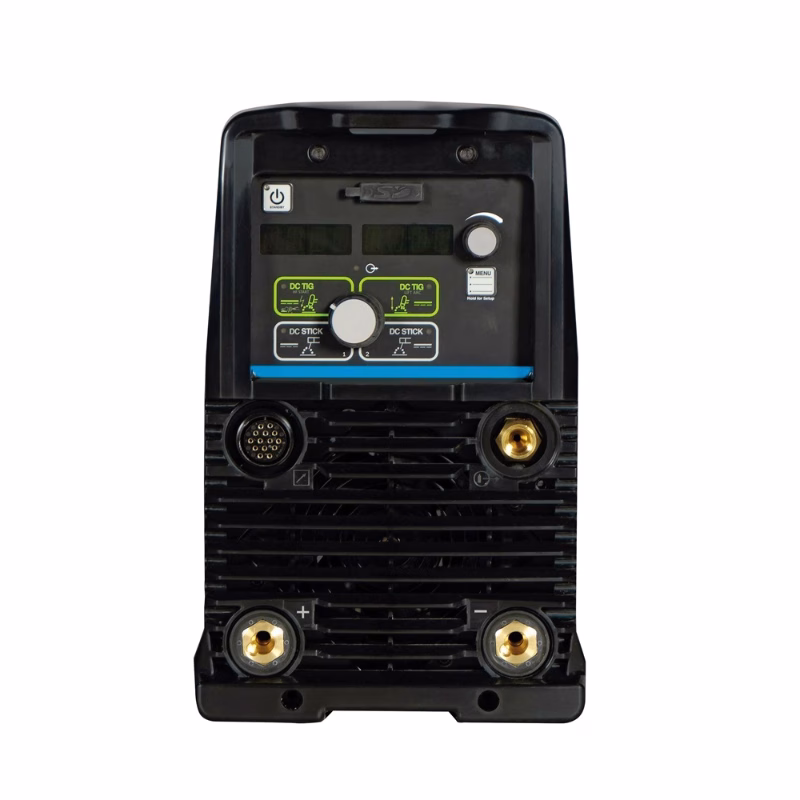

Miller – Maxstar® 280 TIG Welders
The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 50 pounds, it can weld up to 3/8 in. thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.
Description
Product Literature
Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Stick (SMAW)
TIG (GTAW)
TIG DC (GTAW-DC)
General Specifications
| Title | Maxstar® 280 208-575 V, CPS |
|---|---|
| Applications | Fabrication Process Pipe Refineries and Power Plants Stainless Steel Tube and Pipe Fabrication |
| Industries | Aerospace Shipbuilding |
| Material Thickness | Steel 0.004 in. (0.1 mm) – 3/8 in. (9.5 mm) |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Current Type | DC |
| Max Open Circuit Voltage | 60 VDC |
| CACA Thickness | 3/16 in |
| Amperage Min | 1 A |
| Amperage Max | 280 A |
| Portability | Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | CC |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
Additional information
| Brand |
Miller |
|---|
