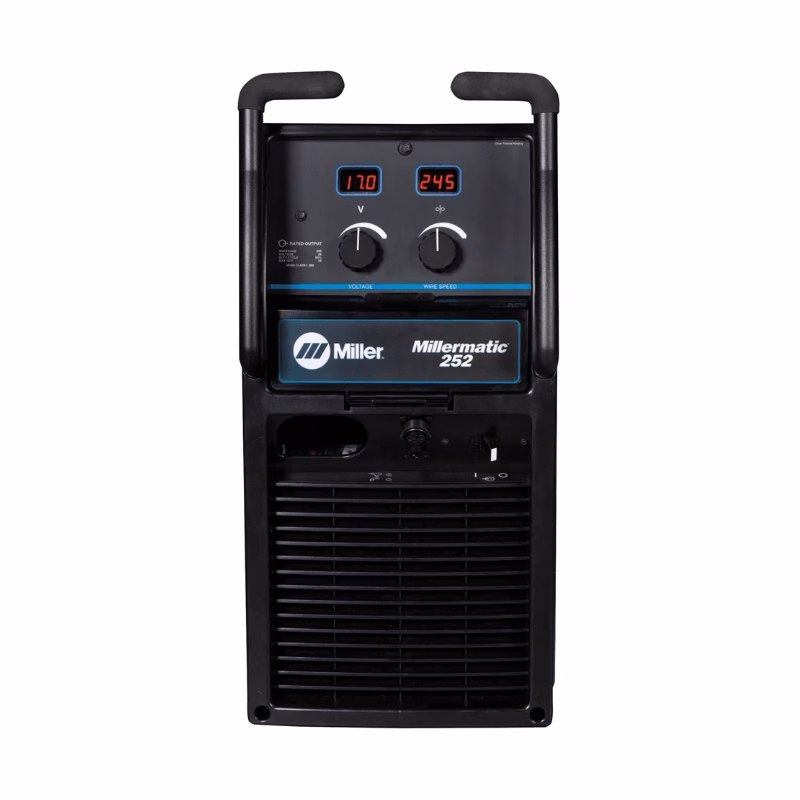

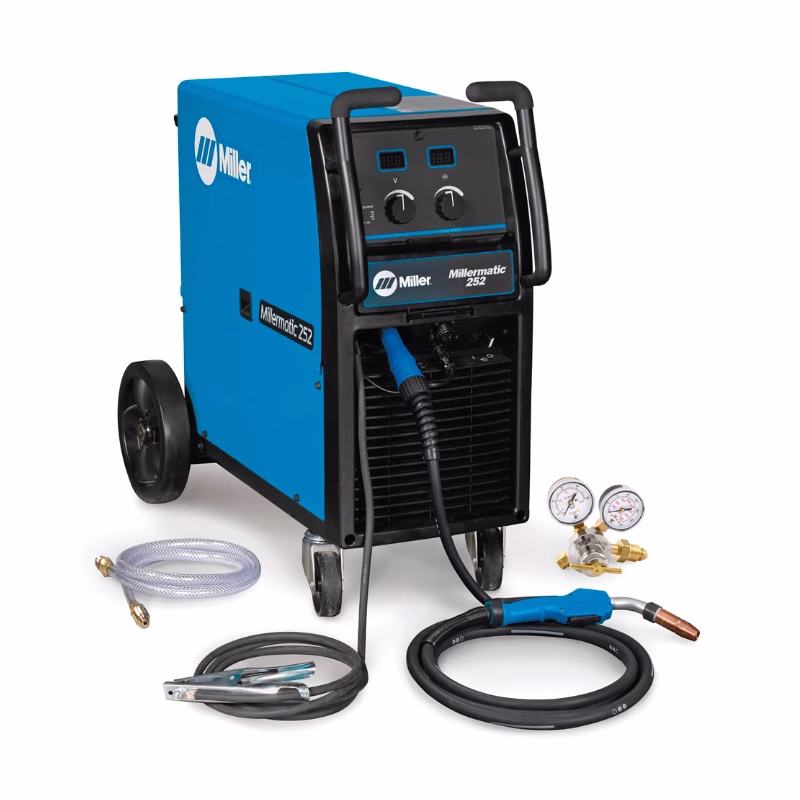

Miller – Millermatic® 252 MIG Welder
A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.
| Brand | Miller |
|---|
8 People watching this product now!
Product Literature
Processes
Flux Cored (FCAW)
MIG (GMAW)
General Specifications
| Title | Millermatic® 252 MIG Welder – 200(208)/230V |
|---|---|
| Applications | Welding Education and Training Welding Projects |
| Industries | Racing Farm and Ranch Manufacturing |
| Amperage | 30 A – 300 A |
| Material Thickness | Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle |
| Max Open Circuit Voltage | 38 VDC |
| Wire Feed Speed | 1.3 m/min – 17.8 m/min 50 IPM – 700 IPM |
| Wire Diameter | Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.6 mm. – 1.2 mm. Solid Steel 0.023 in. – 0.045 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. |

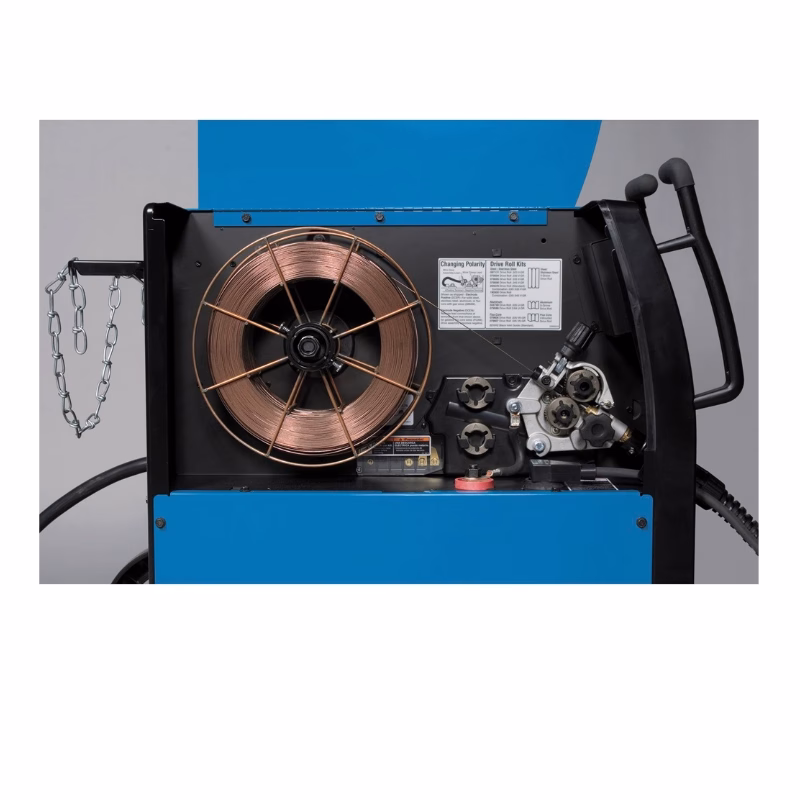

| Spool Size | 12 in (305 mm) |

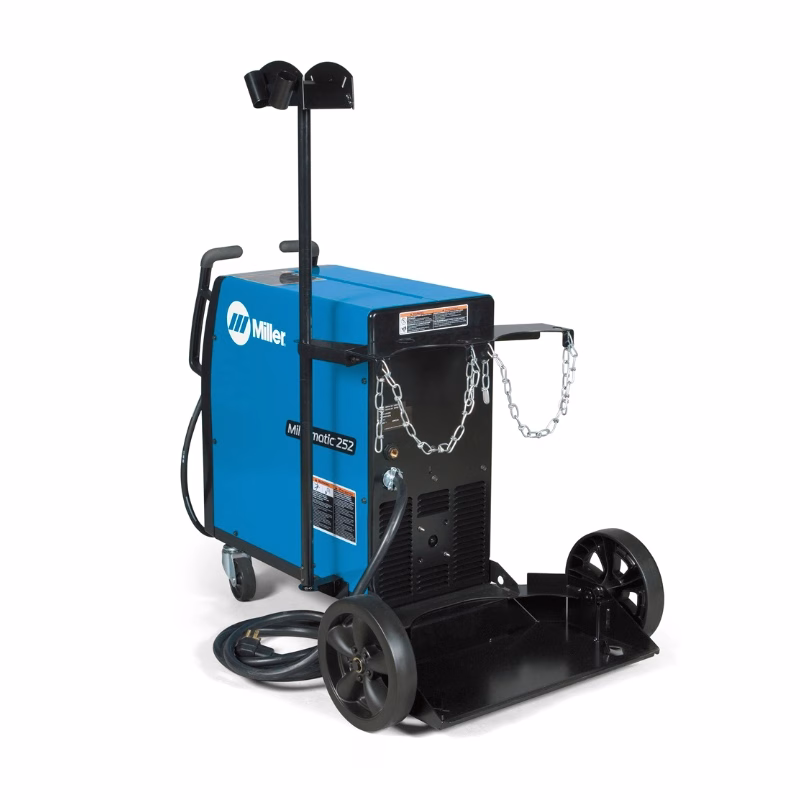

| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 42 A |
| Net Width | 19 in |
| Net Height | 30 in |
| Net Length | 40 in |
| Net Weight | 205 lbs |
