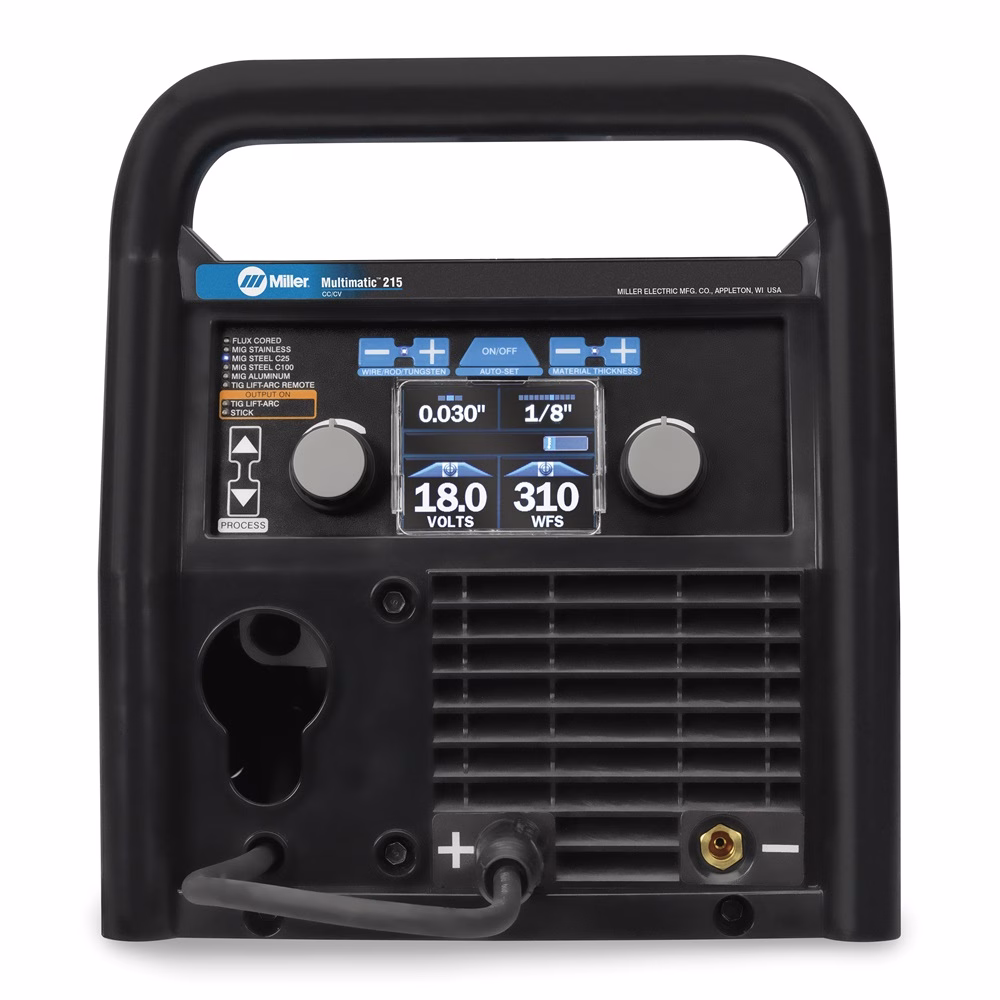

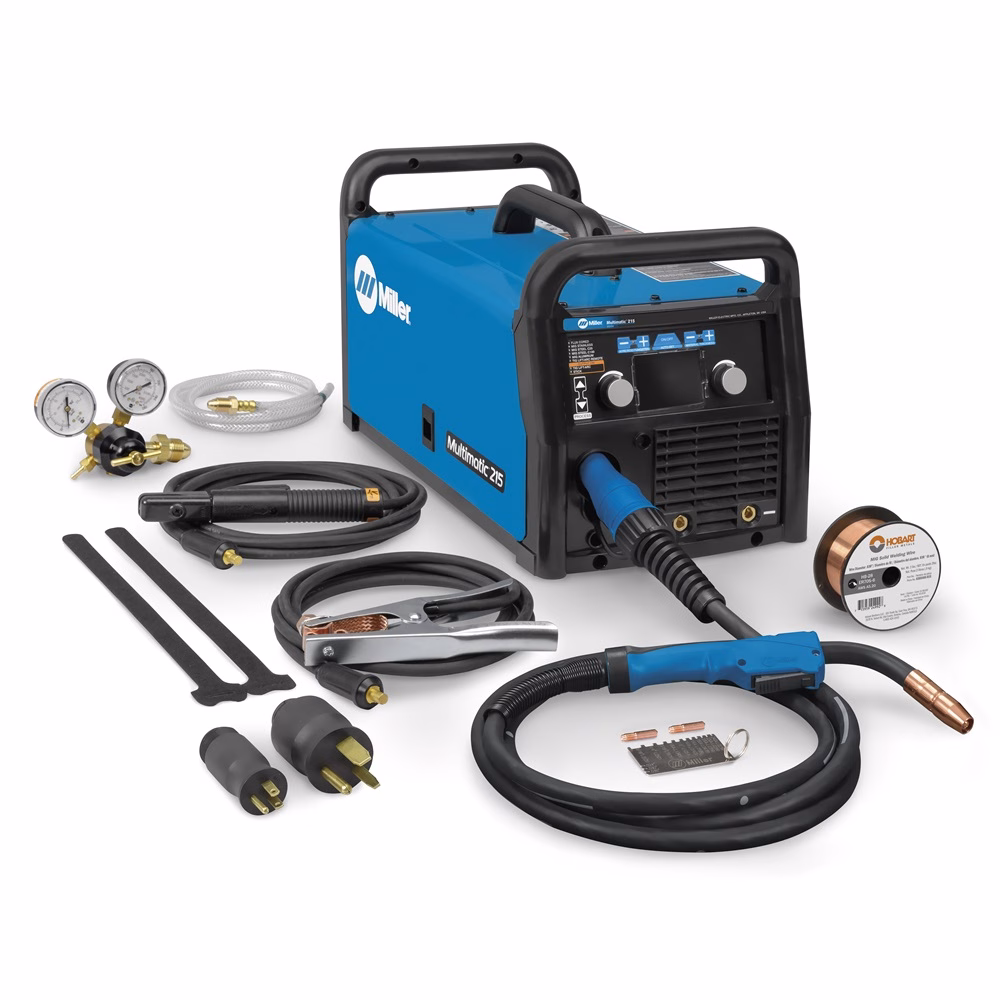

Miller – Multimatic® 215 Multiprocess Welder
Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.
| Brand | Miller |
|---|
19 People watching this product now!
Product Literature
Processes
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Stick (SMAW)
TIG DC (GTAW-DC)
General Specifications
| Title | Multimatic® 215 Multiprocess Welder |
|---|---|
| Applications | Welding Education and Training Welding Projects |
| Industries | Racing Farm and Ranch |
| Amperage | 20 A – 230 A |
| Material Thickness | Mild Steel 24 ga. – 3/8 in. (MIG) Mild Steel 24 ga. -3/16 in. (TIG) Mild Steel 16 ga. – 3/8 in. (Stick) Aluminum 18 ga. – 3/8 in (MIG) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Max Open Circuit Voltage | 58 VDC |
| Wire Feed Speed | 1.8 m/min – 10.8 m/min 70 IPM – 425 IPM |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Net Width | 11.25 in |
| Net Height | 12.5 in |
| Net Length | 20.5 in |
| Net Weight | 38 lbs |
